How to Use & Setup Your Transforma Ladder & Accessories

Get the most out of your Transforma Ladder with the right accessory setup. This guide covers the correct use of the Leg Leveller, Extendable Plank, Work Platform, and Wall Standoff, with simple instructions and key safety points.

Transforma Ladder

Whether you’re setting up your ladder for the first time or just need a quick refresher, here’s a simple guide to help you get the most out of your Transforma Ladder.

What is the Transforma Ladder?

The Transforma Ladder is a multi-purpose ladder system designed to adapt to different working environments. It combines three core components:

  • Inner ladder unit.
  • Two outer sliding ladder sections.
  • Place the platform on the desired rung.
  • Locking hinge and height adjustment system

It can be used in multiple configurations:
✔ A-Frame
✔ Extension
✔ Step Level (stairs)
✔ Scaffolding/Trestle

(As shown in the diagrams in the manual )

Before You Start
Before using the ladder:
  • Check it is not damaged
  • Ensure all locks and hinges are working properly
  • Set up on firm, level ground

Basic Setup (Getting Started)

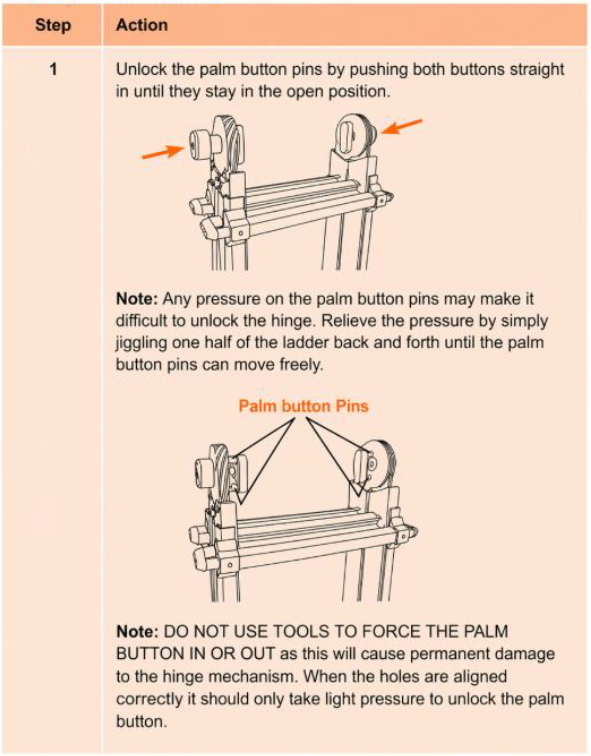

Step 1: Unlock the Ladder

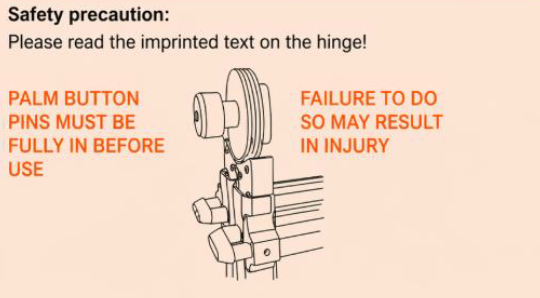

  • Press both palm button hinges
  • Ensure they fully release before moving the ladder

⚠️ Do not force the buttons — if stuck, slightly adjust the ladder to relieve pressure

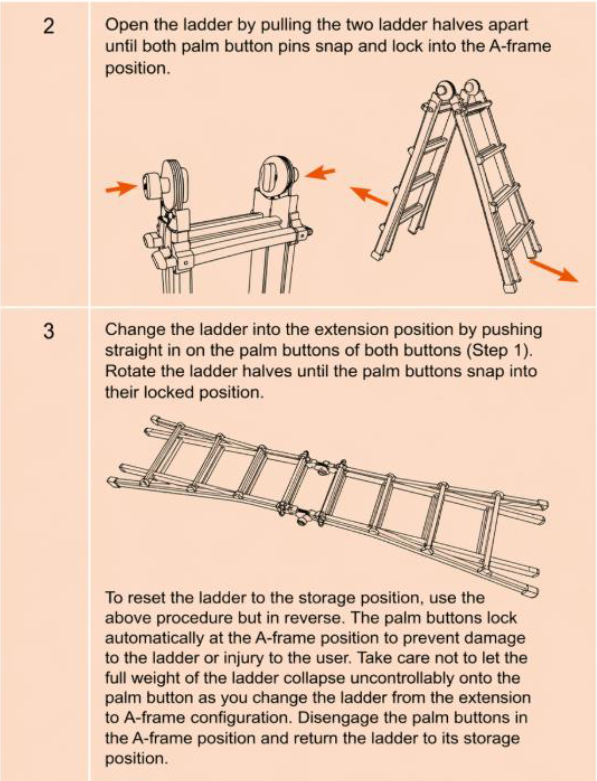

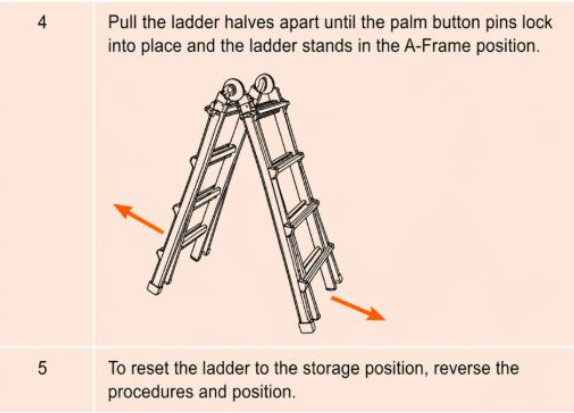

Step 2: Open into A-Frame

  • Pull the ladder apart
  • Ensure both hinge locks click securely into place

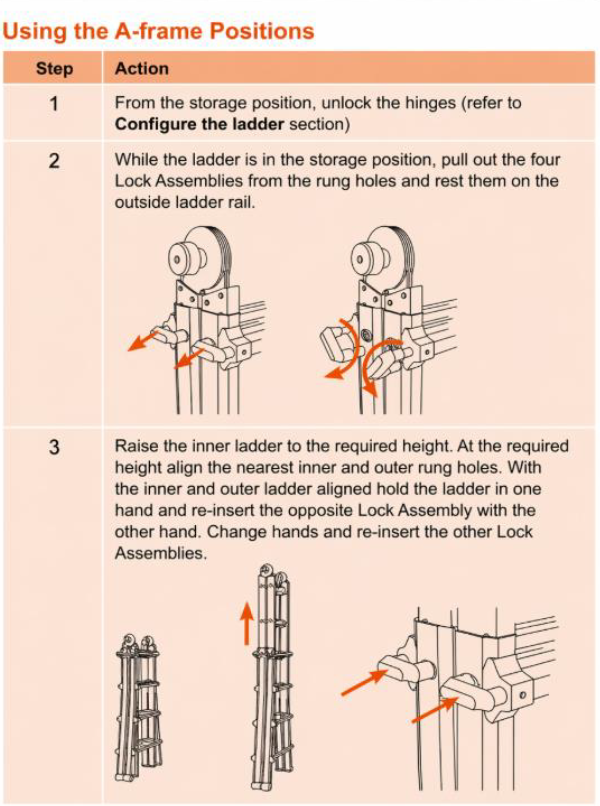

Step 3: Adjust Height

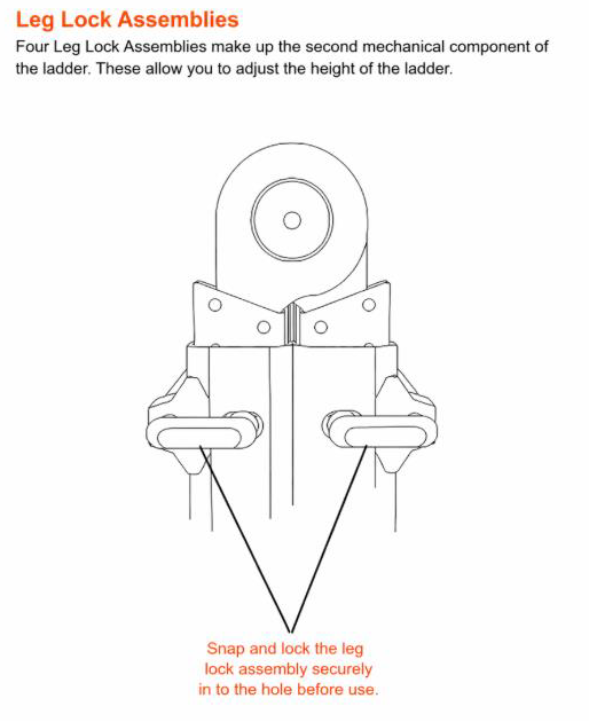

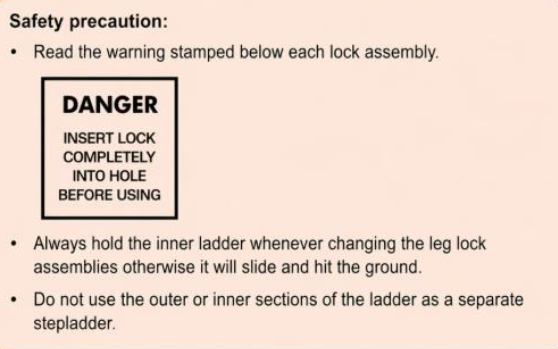

  • Pull out the leg lock assemblies
  • Set to desired height
  • Reinsert locks securely before use

(See illustration of leg locks on page 11 )

Using Different Ladder Positions

A-Frame Position

  • Open ladder fully
  • Ensure both sides are level and locked
  • Ideal for general tasks and stability

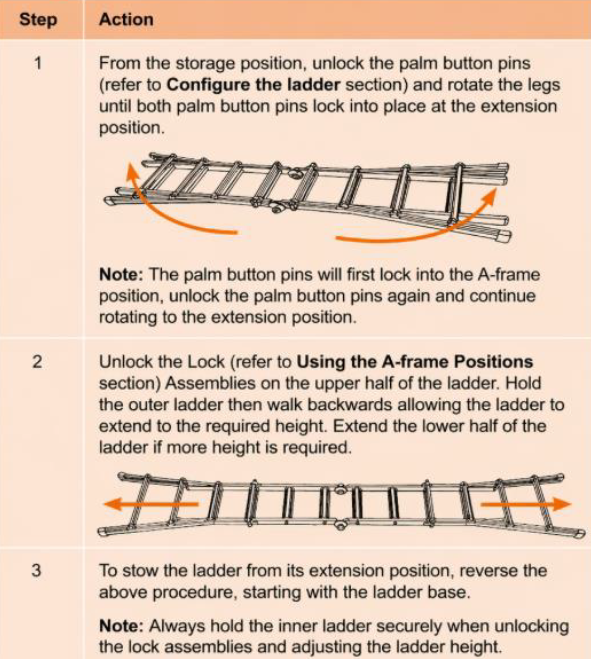

Extension Ladder

  • Unlock hinges and straighten ladder fully
  • Extend upper section first
  • Then adjust lower section

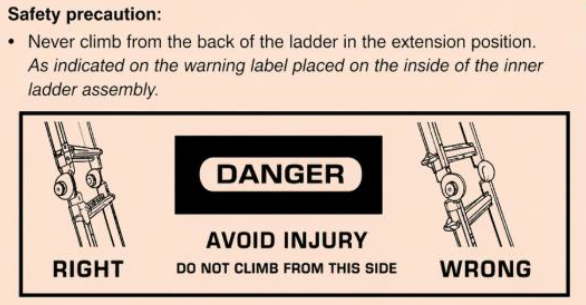

⚠️ Never climb from the back side

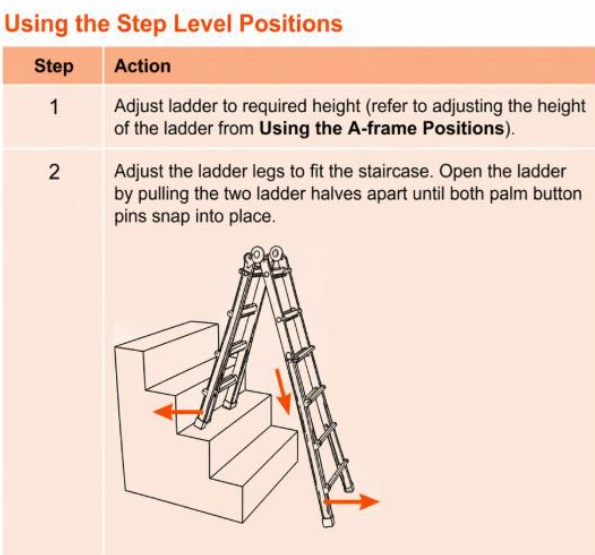

Step Level (Stairs Use)

  • Adjust ladder height first
  • Set legs at different heights to match steps
  • Ensure ladder is stable before climbing

(See diagram on page 15 )

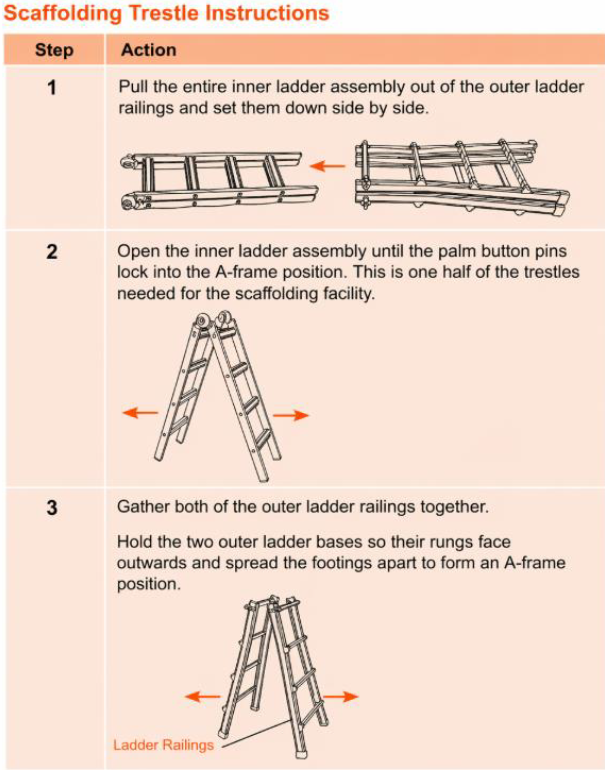

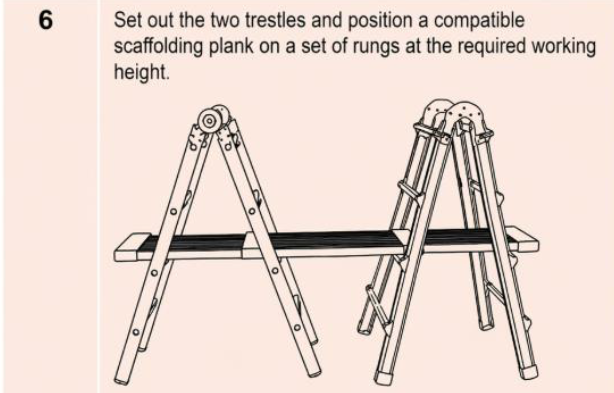

Scaffolding / Trestle Setup

  • Separate inner ladder from outer rails
  • Form two A-frame bases

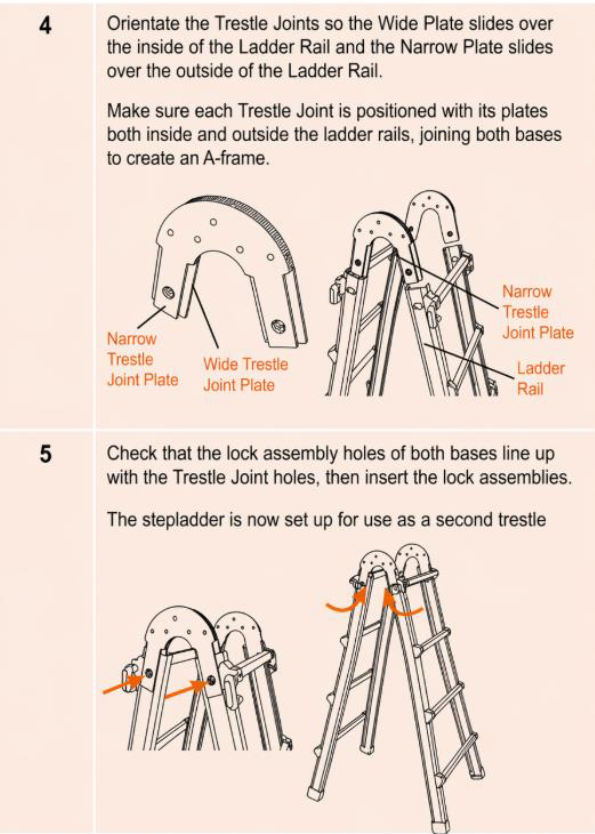

  • Attach trestle joints
  • Place plank across both ladders

⚠️ Ensure all connections are secure before use

Safety Tips (Important)
  • Always face the ladder when climbing
  • Do not stand on the top two rungs
  • Keep your body centred — avoid overreaching
  • Use correct angle (approx. 75° for extension use)
  • Ensure ladder feet are secure and stable
(Refer to safety guidance on pages 3–4 )

Care & Maintenance

  • Oil hinges every 6 months
  • Keep rails clean and free from debris
  • Store in a dry place
  • Check all components before each use

(See maintenance section on page 20 )

Full Manual
For detailed diagrams and full instructions, refer to the complete user manual.

Download Transforma Ladder Complete User Manual

Leg Leveller

A Leg Leveller gives you confidence when working on uneven ground. Instead of struggling to balance your ladder, it lets you easily adjust one side so the ladder stays stable and secure.
Perfect for outdoor use, sloped surfaces, and areas where standard ladders feel unsafe.

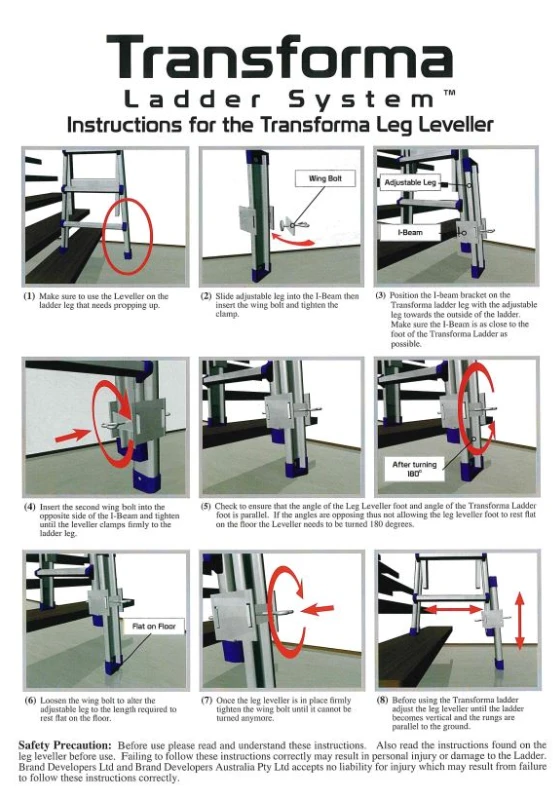

Setup Steps

  • Attach the Leg Leveller to the ladder leg that needs propping up.
  • Slide the adjustable leg into the I-beam and tighten the clamp.
  • Position the I-beam bracket on the ladder leg with the adjustable leg facing the outside of the ladder.
  • Insert the second wing bolt and tighten until the leveller grips firmly.
  • Adjust the leveller length until the foot sits flat on the floor.
  • Tighten securely before use.
  • Check that the ladder is vertical and the rungs are parallel to the ground.

If the foot angle is opposite to the ladder foot angle, the leveller may need to be turned 180 degrees. This is shown in the instruction sheet diagrams.

Safety Note

Always read and understand the instructions before use. The leg leveller must be set correctly before climbing.

Download Leg Leveller Safety Instructions

Extendable Plank

xtendable Plank An Extendable Plank transforms your ladder into a wider, more comfortable working platform. Instead of constantly climbing up and down, you can move freely across a stable surface.
Ideal for painting, maintenance, and jobs where you need more space to work efficiently.

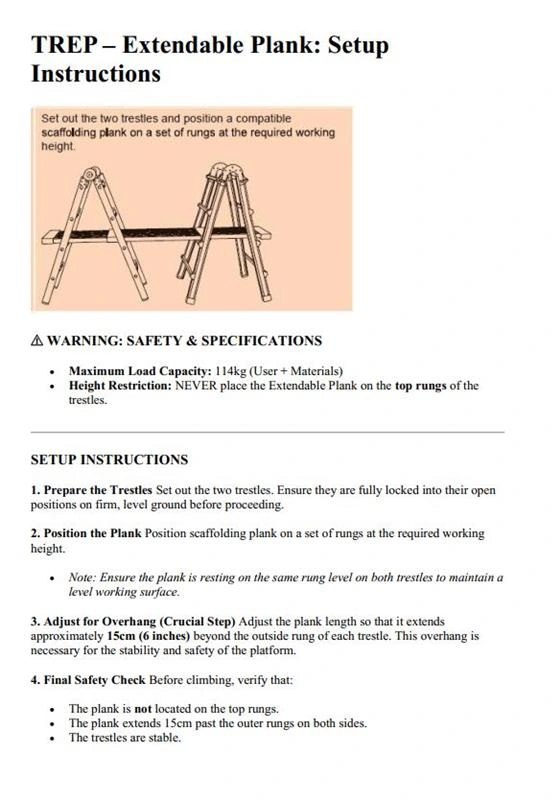

Setup Steps

  • Set up both trestles on firm, level ground.
  • Lock them fully into the open position.
  • Place the plank on matching rung levels on both trestles.
  • Adjust the plank so it extends about 15cm beyond the outer rung on each side.
  • Before climbing, confirm both trestles are stable and the plank is not on the top rungs.

The plank should rest on the same rung level on both trestles to maintain a level working surface, and the 15cm overhang on both sides is required for stability.

Safety Note

Maximum load capacity is 114kg including user and materials. Never place the extendable plank on the top rungs.

Download Extendable Plank Safety Instructions

Work Platform

Work Platform A Work Platform gives you a solid, stable standing area right on your ladder. It provides a more secure and controlled working position while you’re at height.
It can also double as a handy shelf for tools, so everything you need is within reach.

Setup Steps

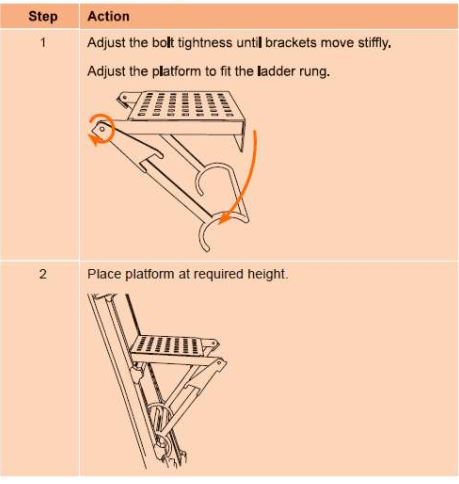

  • Check the bracket tension before first use.
  • Adjust the bolts until the brackets move stiffly but can still be adjusted by hand.
  • Place the platform on the desired rung.
  • Make sure it is not higher than the 3rd rung from the top when standing on it.

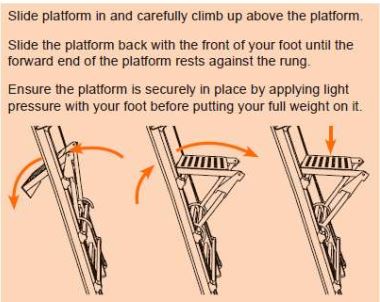

  • Slide the platform forward to create clearance.
  • Climb to the rung above it.
  • Slide the platform back toward you with the front of your foot until it rests securely against the rung.
  • Test with light pressure before standing on it fully.

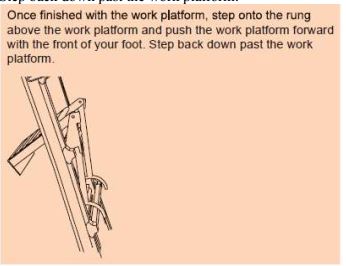

To dismount, step onto the rung above the platform, push the platform forward with your foot to unlock it, then step back down past the platform.

Safety Note

Inspect before use, ensure nuts and bolts are tight, never use if wet or slippery, and do not place loose tools on the standing surface while standing on it.

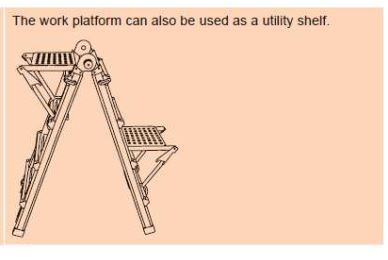

Utility Shelf Mode

The Work Platform can also be used as a utility shelf for holding tools or paint cans. In this setup, it can be placed on the outer section of the ladder as shown in the instruction sheet.

Download Work Platform Safety Instructions

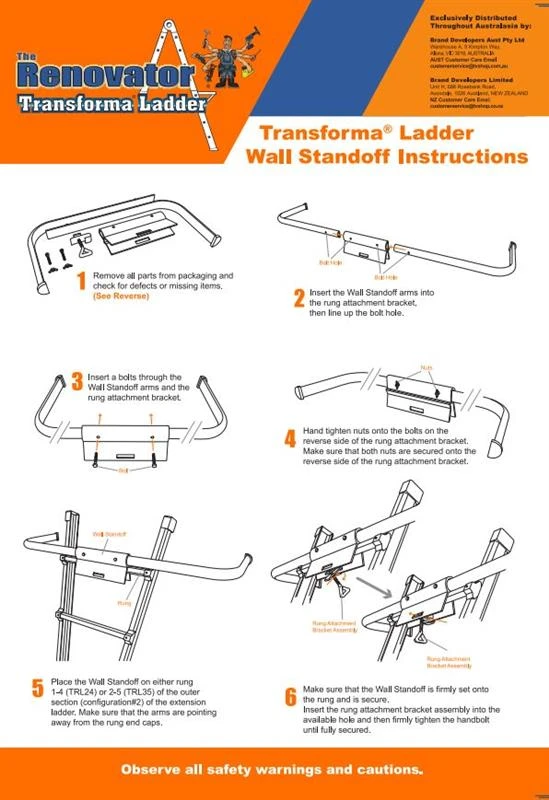

Wall Standoff

Wall Standoff A Wall Standoff creates safe spacing between your ladder and the wall, giving you better positioning and improved stability while working.
Great for gutters, roof access, and jobs where direct ladder contact isn’t ideal.

Setup Steps

  • Only use the Wall Standoff against a vertical wall.
  • Make sure both standoff feet are pressed flush against the wall.
  • Do not rest or overhang the standoff on any ledge, roof edge, or surface.
  • Only use it in the correct orientation shown in the instruction guide.

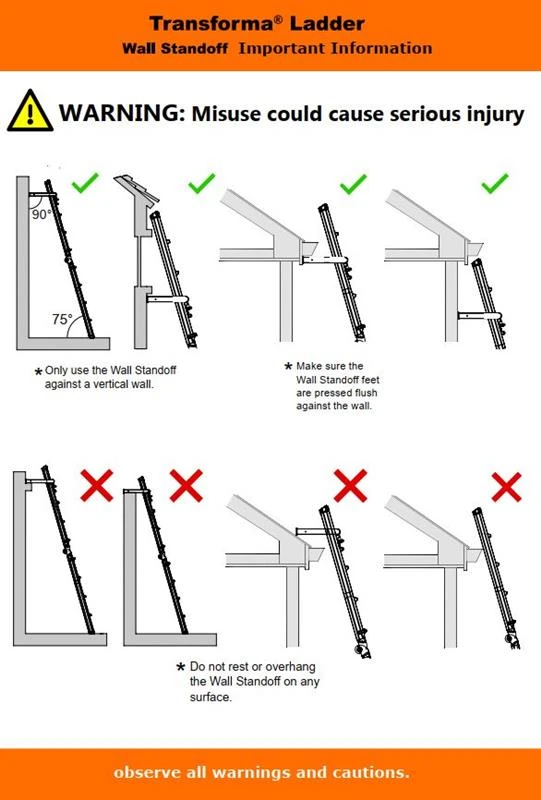

The guide visually shows approved setups with green ticks and unsafe setups with red crosses.

Safety Note

Misuse could cause serious injury. Follow all warnings and cautions shown on the Wall Standoff guide.

Important

The Wall Standoff is non-load bearing and must not be used to support any vertical load. It is intended solely to maintain spacing from the wall. Applying downward or upward force to the standoff may result in instability or failure.
